Product name
Angel Utena.
model number
AU-R Series(AU-40R,AU-45R)
AU-H Series(AU-50H,AU-60H)
ANGEL UTENA Angel Utena (art works etc.)
This device prevents server racks from tipping over in the event of an earthquake, and at the same time serves to reduce the acceleration applied to the racks for data protection.
Product Overview
forte
- It is maintenance-free, so there are no running costs after installation.
- The top and side panels are flat and can be cross-laminated, so they can be changed to match the exhibits or display stands.
- AU-R is a [compact model] and as thin as 50 mm in height.
- AU-H is a “high load model” that can be loaded up to 50 kg.
- The centering function (resilience) provided by the arc rails enables the system to withstand frequent earthquakes after major earthquakes.
Angel Utena.

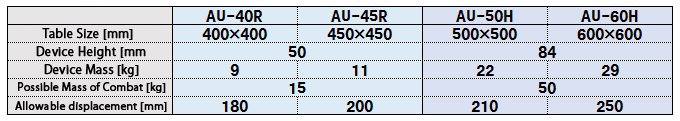

Structure and Specifications

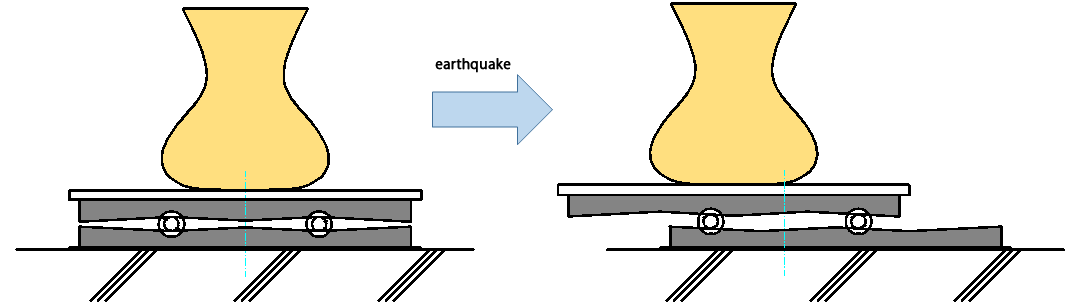

The V-shaped rails are attached to the bottom and top plates, and rollers and friction dampers are incorporated between the rails, achieving appropriate seismic isolation performance regardless of the weight of the exhibit.
The lower and upper plates slide together during earthquakes to release seismic shaking and protect mounted items such as works of art.
Example of Construction
| work | artist | owner | Exhibition Location |
| Seto Black Teacup | Mr. Kozo Kato | Marunuma Art Forest | Asaka City Museum |
