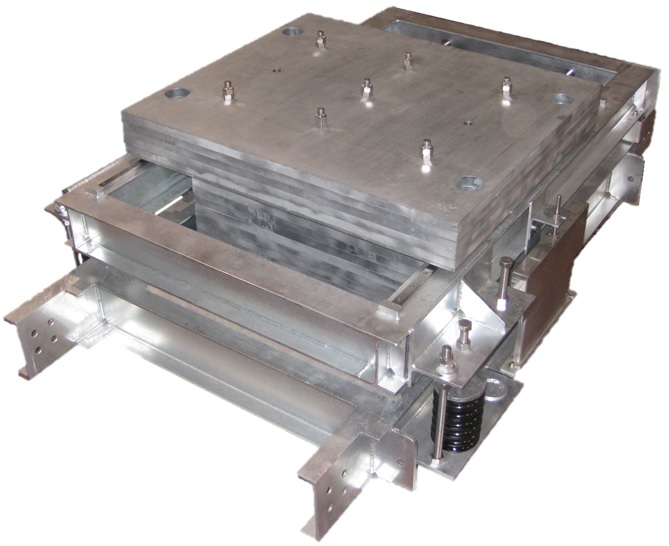

This device reduces the vertical vibration of floors and stairs caused by walking, equipment vibration, traffic vibration, etc. The system absorbs and suppresses vertical vibrations by tuning a vibration mass (weight) to the vertical shaking of floors, stairs, etc. TMDs for horizontal vibration can also be manufactured for wind vibration countermeasures. For more information on TMDs for horizontal vibration, please contact us,this way (direction close to the speaker or towards the speaker)Please contact us from
cantilever type
Spring-supported
Product name
TMD for vertical vibration
model number
TMDV series (cantilever type) TMDV-100sc (vibrating mass 100 kg type) TMDV-300sc (vibrating mass 300 kg type) TMDV-500sc (vibrating mass 500 kg type) TMDV-800sc (vibrating mass 800 kg type) TMDV-1000sc (vibrating mass 1000 kg type) TMDV-1500sc (vibrating mass 1500 kg type) TMDV-2000sc (Vibrating Mass 2000 kg type)
TMDV series (spring-supported) TMDV-1000cb (vibrating mass 1000 kg type) TMDV-1500cb (vibrating mass 1500 kg type) TMDV-2000cb (Vibrating Mass 2000 kg type)
*We can also accommodate vibrating mass masses not listed in the model number. For more information, please contact us.
structure
elements
Cantilever type
It consists of a frame, shaft, arm, vibration mass, coil spring, damping device, and stopper. It is a cantilevered structure. An arm with a pivot point on an axis is attached to a frame fixed to the structure, and a vibration mass is attached to the arm. A coil spring and damping device are attached to the end of that arm. As a result, the arm and vibrating mass vibrate in the vertical direction around the axis, and the damping effect is more efficient than the spring-supported type. Vibration frequency adjustment is performed by moving the vibration mass.
Spring-supported
It consists of a frame, a vibrating mass, a coil spring, a damping device, and a stopper. A coil spring is installed on a frame fixed to the structure, on top of which is placed a vibrating mass. Frequency adjustment is made by increasing or decreasing the type and number of auxiliary springs.
principle
By synchronizing the frequency of the TMD with the vibration control object, the vibrating mass of the TMD is shaken by the vibration of the vibration control object. This swaying of the vibration control object is absorbed by the TMD and reduces the swaying of the vibration control object.
Case Studies
Example of Walking Vibration Countermeasures I
Walking Vibration Countermeasures Case Ⅱ
Walking Vibration Countermeasures Case III
Walking Vibration Countermeasures Case IV
Examples of Earthquake Vibration Countermeasures
Examples of Machine Vibration Countermeasures
Example of floor sway vibration countermeasure
