Product name
Davey Ace Panel
standard
BSK-A type
Conforms to the "Design and Estimation Guidelines for Temporary Soundproofing Equipment" of the Soundproofing Equipment Association of Japan
A drop-in type commonly used for soundproof walls, this is a highly versatile soundproofing panel that can be used for a wide variety of applications.
Soundproofing walls can be installed to suit the topography of the site perimeter, including corners and slopes, making effective use of the site.
Product Overview
forte
- Sufficient soundproofing effect -15dB as a soundproofing wall
- General drop-in type, simple & low cost

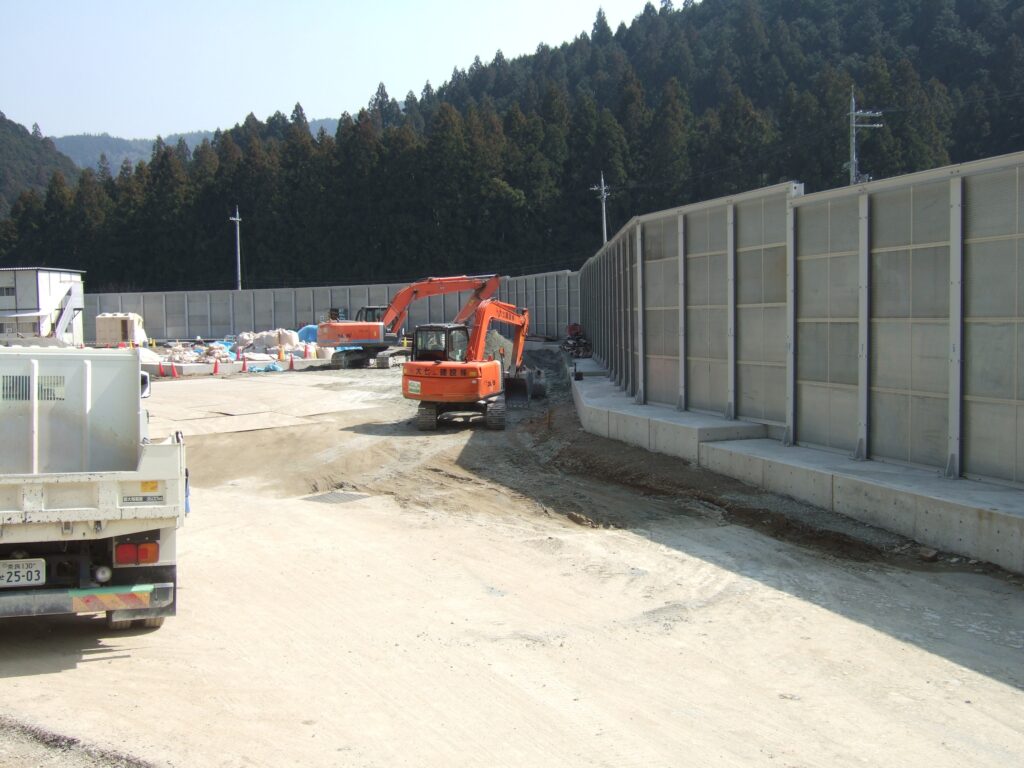

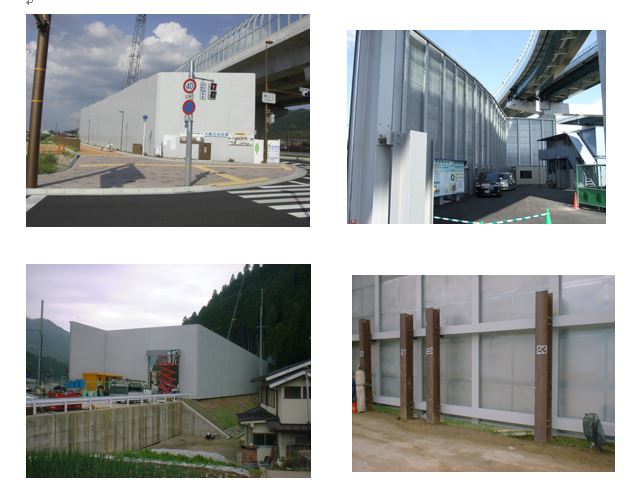

- Soundproof walls can be installed to suit a variety of terrains, including corners and sloping sites, making effective use of the site.
- Efficient soundproofing measures can be planned when used in conjunction with individual sound source countermeasures

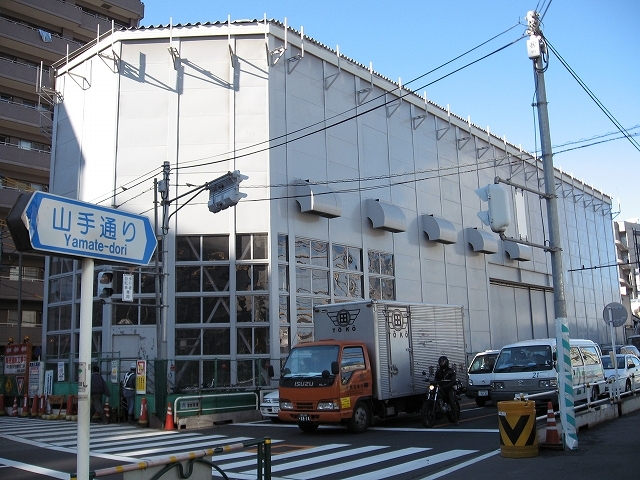

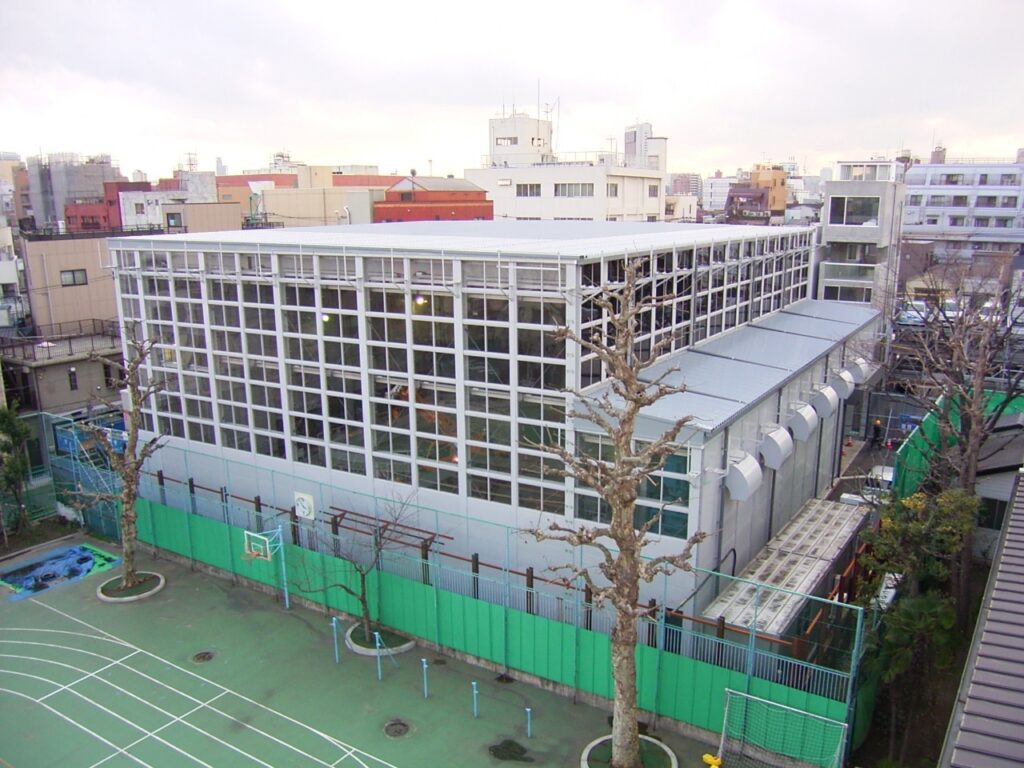

- A roof can also be planned as a soundproof house to reduce the impact on surrounding high-rise buildings as well as the sound that cannot be suppressed by soundproof walls. Higher soundproofing effect of -25dB can be expected.
structure
Soundproofing panel Dimensions

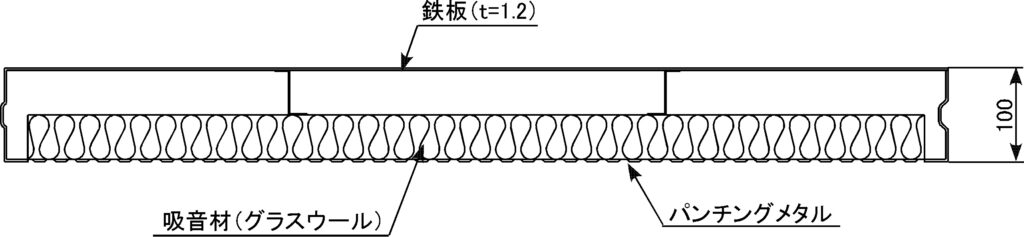

Soundproofing panel Cross section
Cross-section of soundproof wall (pile foundation)
Soundproofing Panel Performance Table
(product) line-up
lighting panel
In cases where shading is a problem, for example, daylighting panels made of transparent polycarbonate panels can be used to ensure daylight.
